High Torque Drive 2M Rubber Synchronous Belts

High Torque Drive 2M Rubber Synchronous Belts

High Torque Drive 2M Rubber Belts Profile

Main Material Neoprene
Chord Material Glass Fiber
Teeth Code 2M
Pitch (mm) 2.00
Belt Height (mm) 1.36
Teeth Height (mm) 0.75
Category:

High Torque Drive 2M Rubber Synchronous Belts

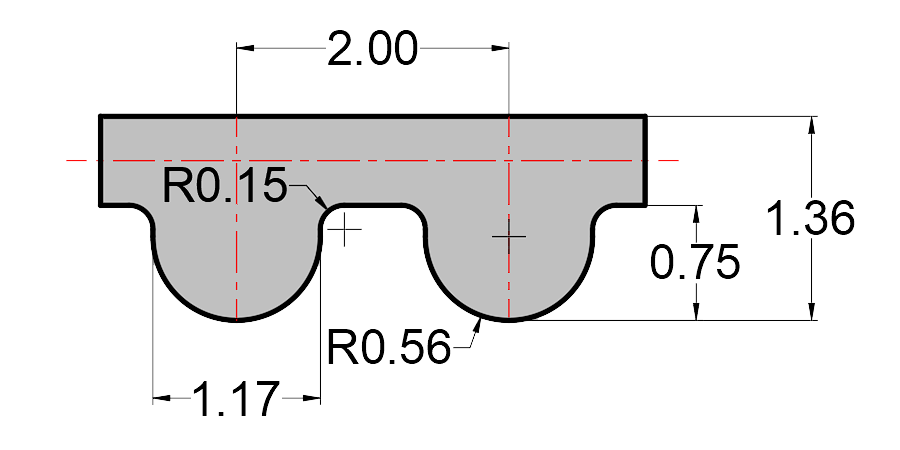

High Torque Drive 2M Rubber Belts Profile:



High Torque Drive 2M Rubber Synchronous Belts Specifications:

Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number
98-2M 98 49 180-2M 180 90 336-2M 336 168
100-2M 100 50 184-2M 184 92 340-2M 340 170
102-2M 102 51 190-2M 190 95 360-2M 360 180
112-2M 112 56 192-2M 192 96 396-2M 396 198
120-2M 120 60 194-2M 194 97 448-2M 448 224
130-2M 130 65 204-2M 204 102 460-2M 460 230
132-2M 132 66 208-2M 208 104 488-2M 488 244
134-2M 134 67 210-2M 210 105 494-2M 494 247
140-2M 140 70 214-2M 214 107 506-2M 506 253
146-2M 146 73 216-2M 216 108 560-2M 560 280
150-2M 150 75 236-2M 236 118 660-2M 660 330
152-2M 152 76 250-2M 250 125 750-2M 750 375
154-2M 154 77 260-2M 260 130 984-2M 984 492
158-2M 158 79 270-2M 270 135 1066-2M 1066 533
160-2M 160 80 280-2M 280 140 1224-2M 1224 612
162-2M 162 81 310-2M 310 155
176-2M 176 88 328-2M 328 164
