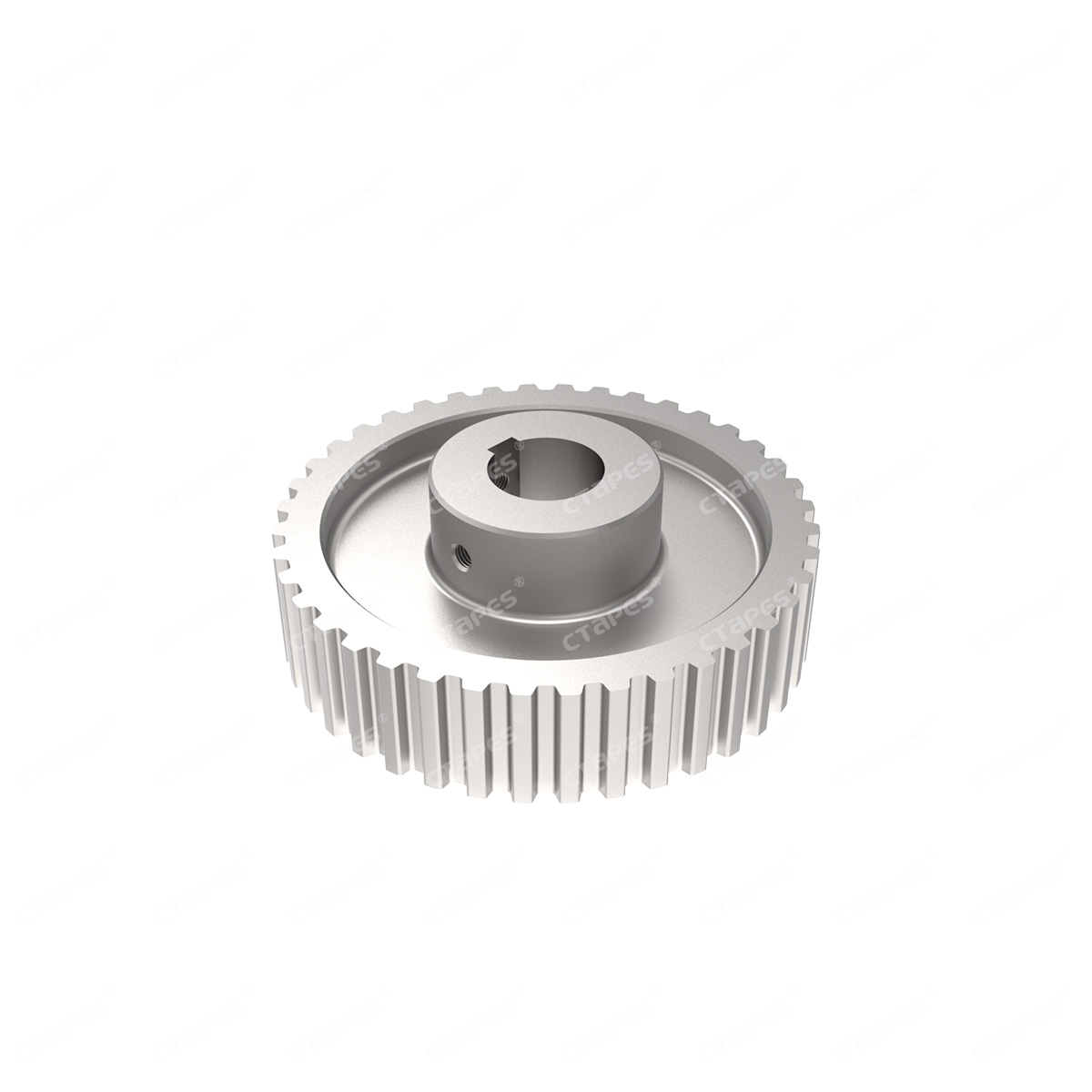

HTD-14M Pulleys
HTD-14M Pulleys Types:
| Model | Numbers Of Teeth | Pitch Diameter Dp | Outer Diameter D | H | K | J | d | F | M |
| P28-14M | 28 | 124.78 | 121.98 | 4 | 25 | 92 | 25 | 134 | 92 |
| P29-14M | 29 | 129.23 | 126.40 | 4 | 25 | 94 | 25 | 139 | 94 |
| P30-14M | 30 | 133.69 | 130.90 | 4 | 25 | 96 | 25 | 143 | 96 |
| P32-14M | 32 | 142.60 | 139.81 | 4 | 25 | 100 | 25 | 152 | 100 |
| P34-14M | 34 | 151.52 | 148.72 | 4 | 25 | 104 | 30 | 161 | 104 |
| P36-14M | 36 | 160.34 | 157.63 | 4 | 25 | 108 | 30 | 172 | 108 |
| P38-14M | 38 | 169.34 | 166.55 | 4 | 25 | 112 | 30 | 179 | 112 |
| P40-14M | 40 | 178.25 | 175.46 | 4 | 25 | 114 | 30 | 114 | |
| P44-14M | 44 | 196.08 | 193.28 | 4 | 25 | 118 | 30 | ||
| P48-14M | 48 | 213.90 | 211.11 | 4 | 25 | 120 | 30 | ||
| P56-14M | 56 | 249.55 | 246.76 | 4 | 25 | 124 | 30 | ||
| P60-14M | 60 | 267.38 | 264.59 | 4 | 25 | 128 | 40 | ||
| P64-14M | 64 | 285.21 | 282.41 | 4 | 25 | 130 | 40 | ||
| P72-14M | 72 | 320.86 | 318.06 | 4 | 25 | 134 | 50 | ||
| P80-14M | 80 | 356.51 | 353.71 | 4 | 25 | 138 | 50 | ||
| P84-14M | 84 | 374.33 | 371.54 | 4 | 25 | 140 | 50 | ||
| P90-14M | 90 | 401.07 | 398.28 | 4 | 25 | 142 | 50 | ||
| P96-14M | 96 | 427.81 | 425.01 | 4 | 25 | 146 | 50 |
