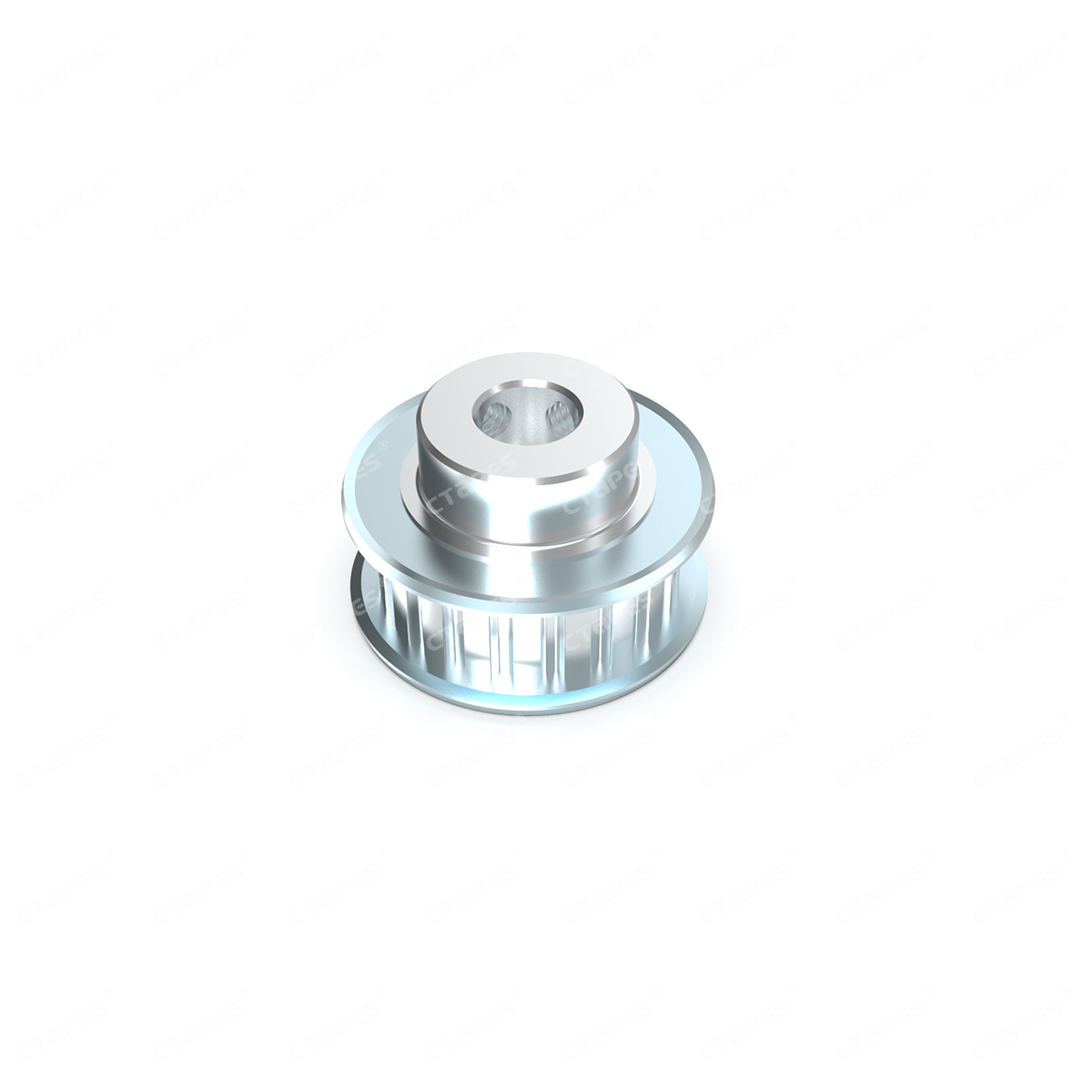

HTD-5M Pulleys

HTD-5M Pulleys

HTD-5M Pulleys Parameters:

Teeth Code HTD-5M
Materials Steel, Aluminum
Number Of Teeth 14 ~ 60
Pitch Diameter (mm) 22.28 ~ 95.49
Pulley Outer Diameter (mm) 21.14 ~ 94.35
Shaft Diameter d (mm) 6 ~ 12
Category: Tag:

HTD-5M Pulleys

HTD-5M Pulleys Types:

Model Numbers Of Teeth Pitch Diameter Dp Outer Diameter D H K J d F M
P14-5M 14 22.28 21.14 1.85 10 12 6 28 18
P15-5M 15 23.87 22.73 1.85 10 13 6 28 18
P16-5M 16 25.46 24.32 1.85 10 15 6 31 20
P18-5M 18 28.65 27.50 1.85 10 18 6 33 22
P19-5M 19 30.24 29.10 1.85 10 19 6 35 22
P20-5M 20 31.83 30.69 1.85 10 20 8 35 22
P21-5M 21 33.42 32.28 1.85 10 22 8 38 26
P22-5M 22 35.01 33.87 1.85 10 22 8 38 26
P24-5M 24 38.20 37.05 1.85 10 26 8 43 28
P25-5M 25 39.79 38.65 1.85 10 28 8 44 32
P26-5M 26 41.38 40.24 1.85 10 28 10 47 34
P28-5M 28 44.56 43.42 1.85 10 30 10 48 36
P30-5M 30 47.75 46.60 1.85 10 32 10 51 36
P32-5M 32 50.93 49.79 1.85 10 34 10 55 39
P36-5M 36 57.30 56.15 1.85 10 38 12 61 41
P40-5M 40 63.66 62.52 1.85 10 40 12 69 50
P48-5M 48 76.39 75.25 1.85 10 46 12 83 63
P60-5M 60 95.49 94.35 1.85 10 52 12 99 78
