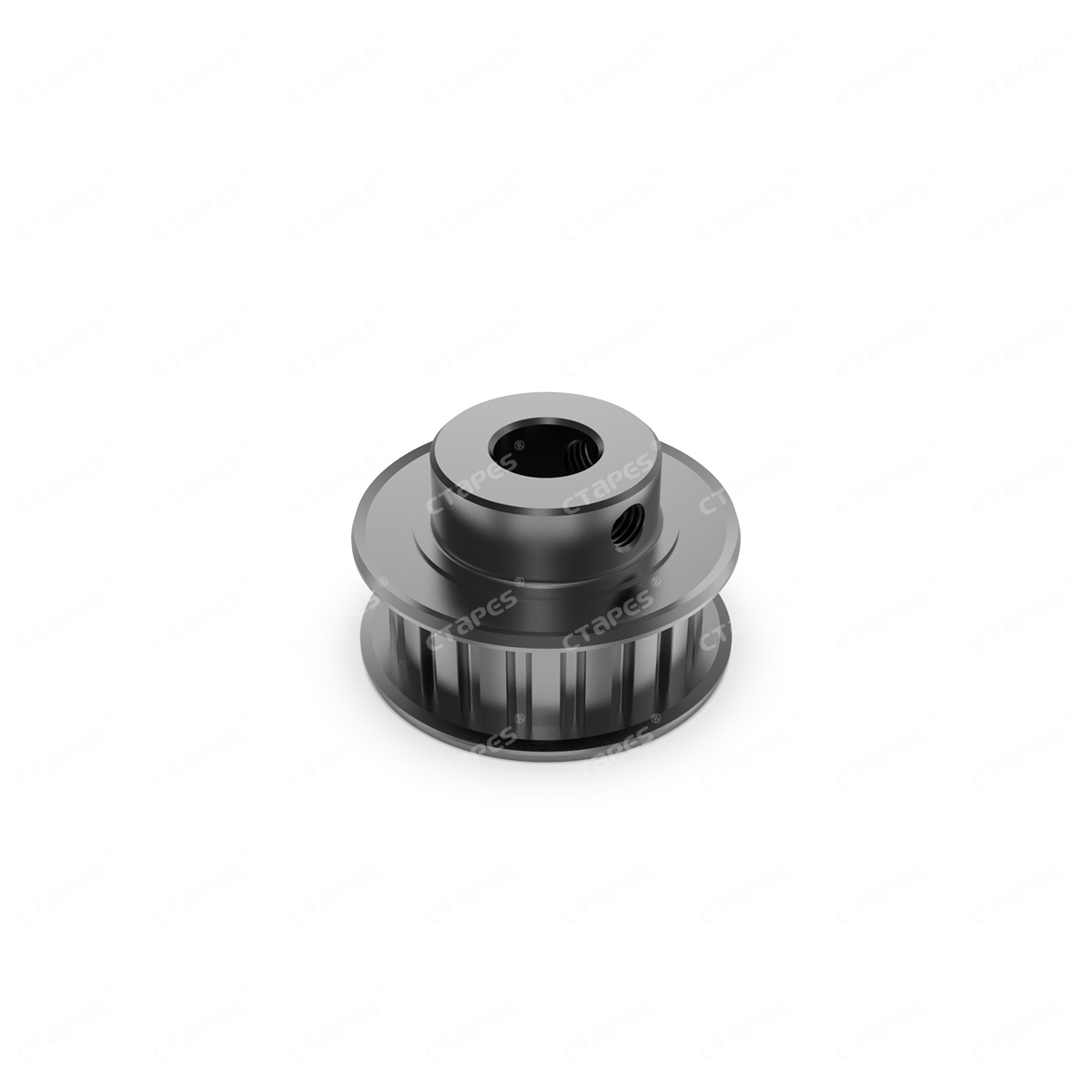

HTD-8M Pulleys

HTD-8M Pulleys

HTD-8M Pulleys Parameters:

Teeth Code HTD-8M
Materials Steel, Aluminum
Number Of Teeth 22 ~ 112
Pitch Diameter (mm) 56.02 ~ 285.21
Pulley Outer Diameter (mm) 54.65 ~ 283.83
Shaft Diameter d (mm) 16 ~ 40
Category: Tag:

HTD-8M Pulleys

HTD-8M Pulleys Types:

Model Numbers Of Teeth Pitch Diameter Dp Outer Diameter D H K J d F M
P22-8M 22 56.02 54.65 3.15 20 40 16 61 41
P24-8M 24 61.12 59.74 3.15 20 44 16 69 50
P25-8M 25 63.66 62.29 3.15 20 46 16 69 50
P26-8M 26 66.21 64.48 3.15 20 48 16 74 53
P28-8M 28 71.30 69.93 3.15 20 52 16 78 58
P30-8M 30 76.39 75.02 3.15 20 56 16 83 63
P32-8M 32 81.49 80.12 3.15 20 60 20 90 69
P34-8M 34 86.58 85.21 3.15 20 64 20 93 75
P36-8M 36 91.67 90.30 3.15 20 68 20 99 78
P38-8M 38 96.76 95.39 3.15 20 72 20 105 84
P40-8M 40 101.86 100.49 3.15 20 74 20 112 90
P44-8M 44 112.05 110.67 3.15 20 78 20 121 99
P48-8M 48 122.23 120.86 3.15 20 80 20 131 101
P56-8M 56 142.60 141.23 3.15 20 86 20 152 134
P60-8M 60 152.79 151.42 3.15 20 88 30 161 140
P64-8M 64 162.97 161.60 3.15 20 92 30 168 150
P72-8M 72 183.35 181.97 3.15 20 94 30 192 171
P80-8M 80 203.72 202.35 3.15 20 98 30 212 191
P84-8M 84 213.91 212.53 3.15 20 98 30 223 201
P90-8M 90 229.18 227.81 3.15 20 100 30 238 216
P96-8M 96 244.46 243.09 3.15 20 102 30 253 231
P112-8M 112 285.21 283.83 3.15 20 108 40 294 272
