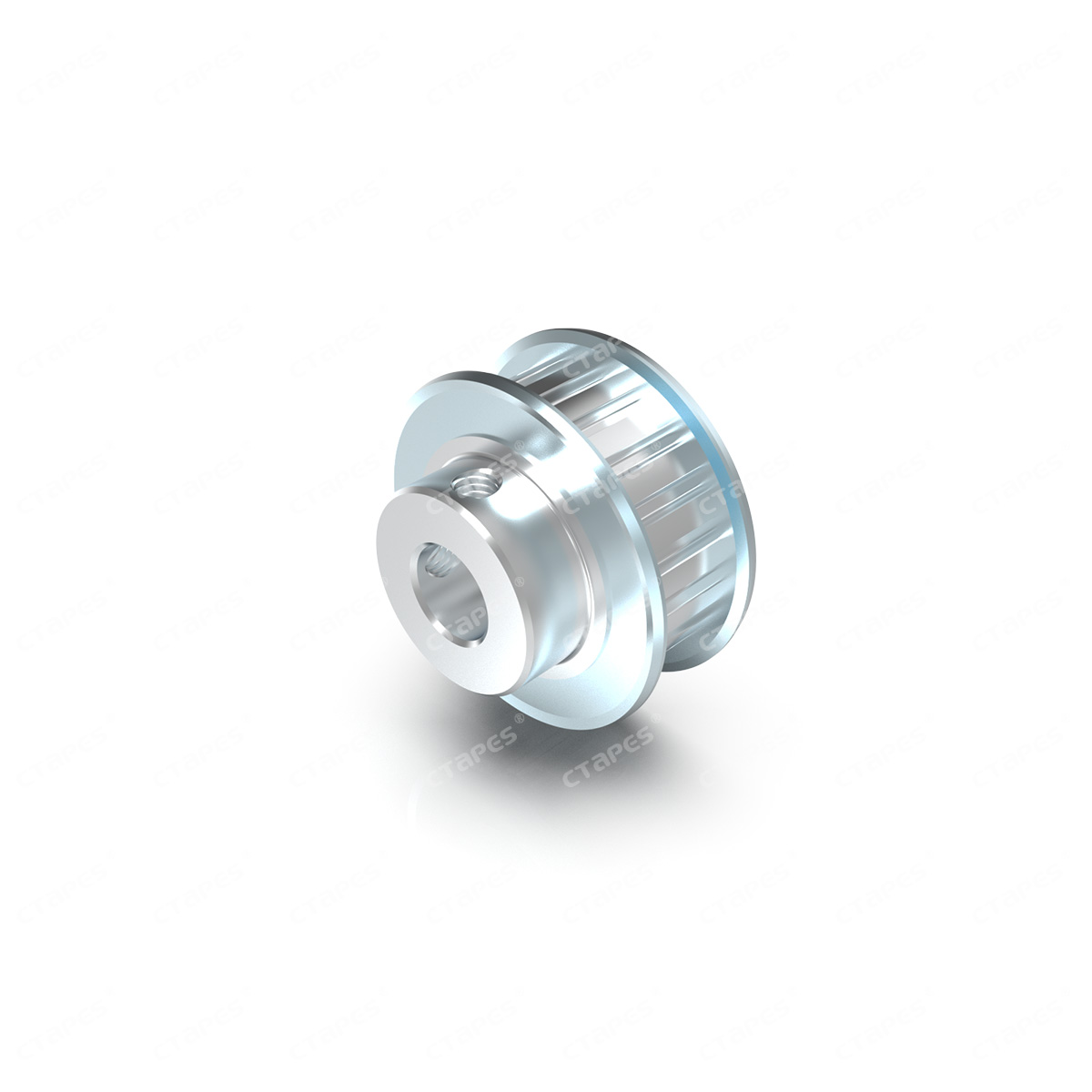

L Pulleys

L Pulleys

L Pulleys Parameters:

Teeth Code L
Materials Steel, Aluminum
Number Of Teeth 10 ~ 84
Pitch Diameter (mm) 30.32 ~ 254.92
Pulley Outer Diameter (mm) 29.56 ~ 253.92
Shaft Diameter d (mm) 6 ~ 38
Category: Tag:

L Pulleys

L Pulleys Teeth Profile:



Model bw (mm) hg (mm) Φ±1.5° rb (mm) rt (mm) 2δ (mm)
L 3.05±0.10 2.67 20 1.19 1.17 0.762

L Pulleys Types:

Model Numbers Of Teeth Pitch Diameter Dp Outer Diameter D H K J d F M
10L 10 30.32 29.56 2.5 12 20 [6, 14] 35 22
12L 12 36.38 35.62 2.5 12 25 [8, 18] 43 28
14L 14 42.45 41.68 2.5 12 30 [10, 20] 47 34
15L 15 45.51 44.72 2.5 12 32 [12, 20] 51 36
16L 16 48.51 47.75 2.5 12 34 [12, 22] 55 39
17L 17 51.54 50.78 2.5 12 35 [12, 22] 57 41
18L 18 54.57 53.81 2.5 12 36 [12, 24] 61 41
19L 19 57.61 56.84 2.5 12 38 [12, 24] 65 50
20L 20 60.64 59.88 2.5 12 40 [12, 26] 65 50
21L 21 63.67 62.91 2.5 12 42 [12, 26] 69 50
22L 22 66.70 65.94 2.5 12 44 [12, 28] 74 53
24L 24 72.77 72.00 2.5 12 44 [12, 28] 78 58
25L 25 75.80 75.04 2.5 12 44 [12, 28] 83 63
26L 26 78.83 78.07 2.5 12 44 [12, 28] 86 66
28L 28 84.89 84.13 2.5 12 50 [12, 30] 93 75
30L 30 90.06 90.96 2.5 12 50 [12, 30] 99 78
32L 32 97.02 96.26 2.5 15 50 [12, 30] 105 84
34L 34 103.08 102.32 2.5 15 56 [16, 32] 112 90
36L 36 109.15 108.39 2.5 15 56 [16, 32] 115 90
40L 40 121.28 120.51 2.5 15 60 [16, 34] 126 100
42L 42 127.34 126.58 2.5 15 60 [16, 34] 131 101
44L 44 133.40 132.64 2.5 20 65 [16, 38] 138 125
48L 48 145.53 144.77 20 65 [16, 38]
50L 50 151.60 150.83 20 65 [16, 38]
60L 60 181.91 181.15 20 65 [16, 38]
72L 72 218.30 217.53 20 65 [16, 38]
84L 84 254.92 253.92 20 65 [16, 38]
