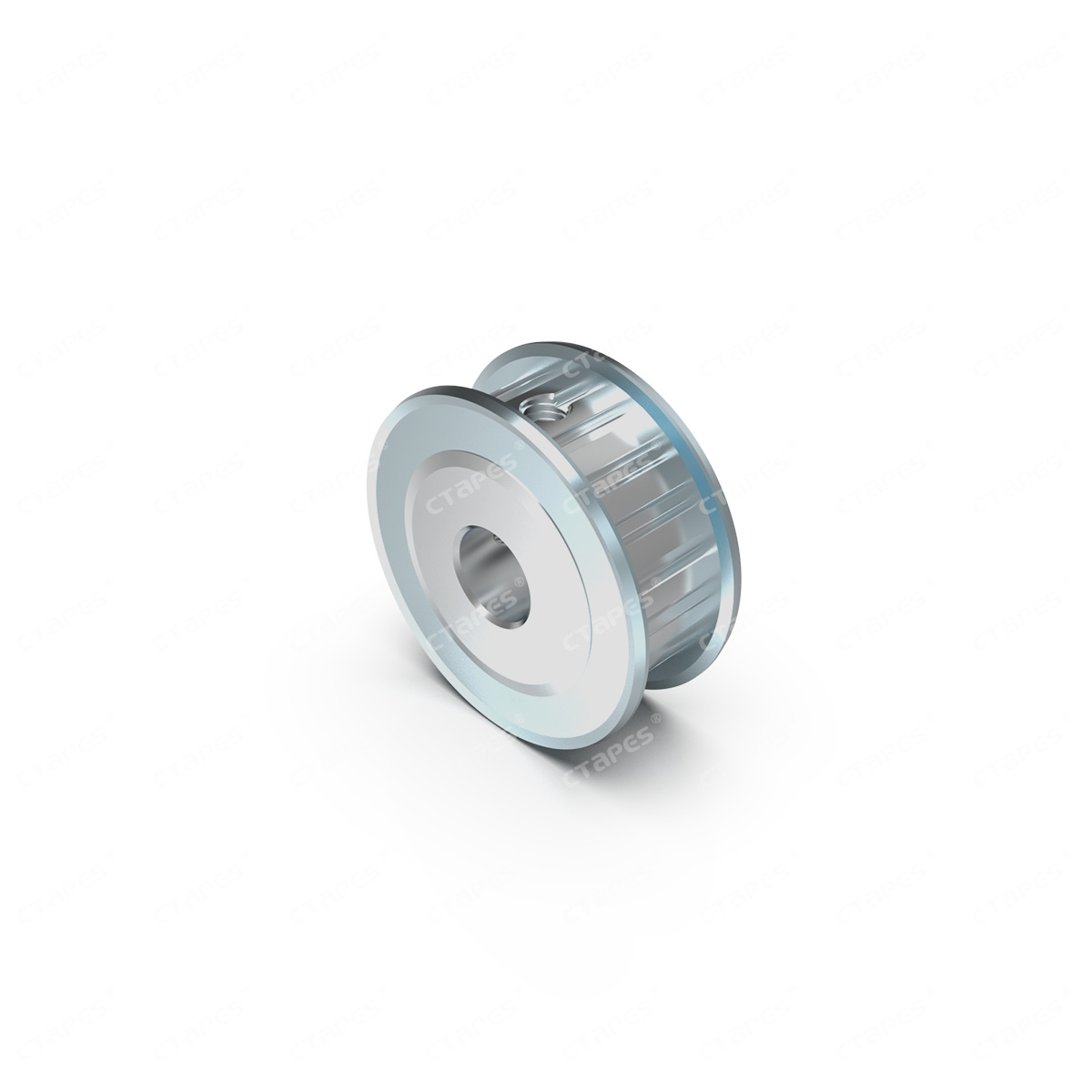

T5 Pulleys

T5 Pulleys

T5 Pulleys Parameters:

Teeth Code T5
Materials Steel, Aluminum
Number Of Teeth 12 ~ 60
Pitch Diameter (mm) 19.10 ~ 95.49
Pulley Outer Diameter (mm) 18.25 ~ 94.64
Shaft Diameter d (mm) 5 ~ 25
Category: Tag:

T5 Pulleys

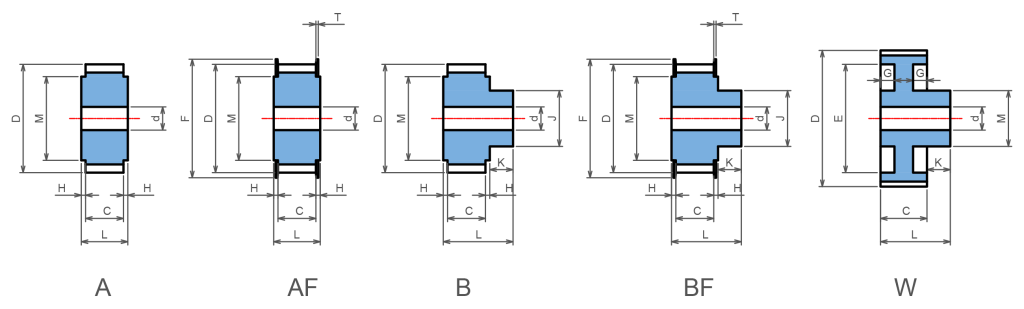

T5 Pulleys Types:

Model Numbers Of Teeth Pitch Diameter Dp Outer Diameter D H K J d F M
T5-12 12 19.10 18.25 2 10 23 [5, 8] 23 12
T5-14 14 22.28 21.45 2 10 26 [6, 10] 26 16
T5-15 15 23.87 23.02 2 10 28 [6, 14] 28 18
T5-16 16 25.46 24.61 2 8 16 [6, 9] 28 18
T5-18 18 28.65 27.80 2 8 18 [6, 10] 31 20
T5-20 20 31.83 31.00 2 8 19 [6, 11] 35 22
T5-22 22 35.01 34.16 2 8 25 [8, 15] 40 28
T5-24 24 38.22 37.35 2 8 25 [8, 15] 43 28
T5-25 25 39.79 38.94 2 8 25 [8, 15] 43 28
T5-26 26 41.38 40.53 2 8 30 [8, 20] 47 34
T5-28 28 44.56 43.71 2 8 30 [8, 20] 48 36
T5-30 30 47.75 46.90 2 8 30 [8, 20] 51 36
T5-32 32 50.93 50.10 2 8 30 [10, 20] 54 41
T5-36 36 57.30 56.45 2 10 30 [10, 20] 61 41
T5-40 40 63.66 62.81 2 10 25 [10, 25] 69 50
T5-44 44 70.03 69.20 10 25 [10, 25]
T5-48 48 76.39 75.55 10 25 [10, 25]
T5-50 50 79.58 78.75 10 25 [10, 25]
T5-60 60 95.49 94.64 10 25 [10, 25]
