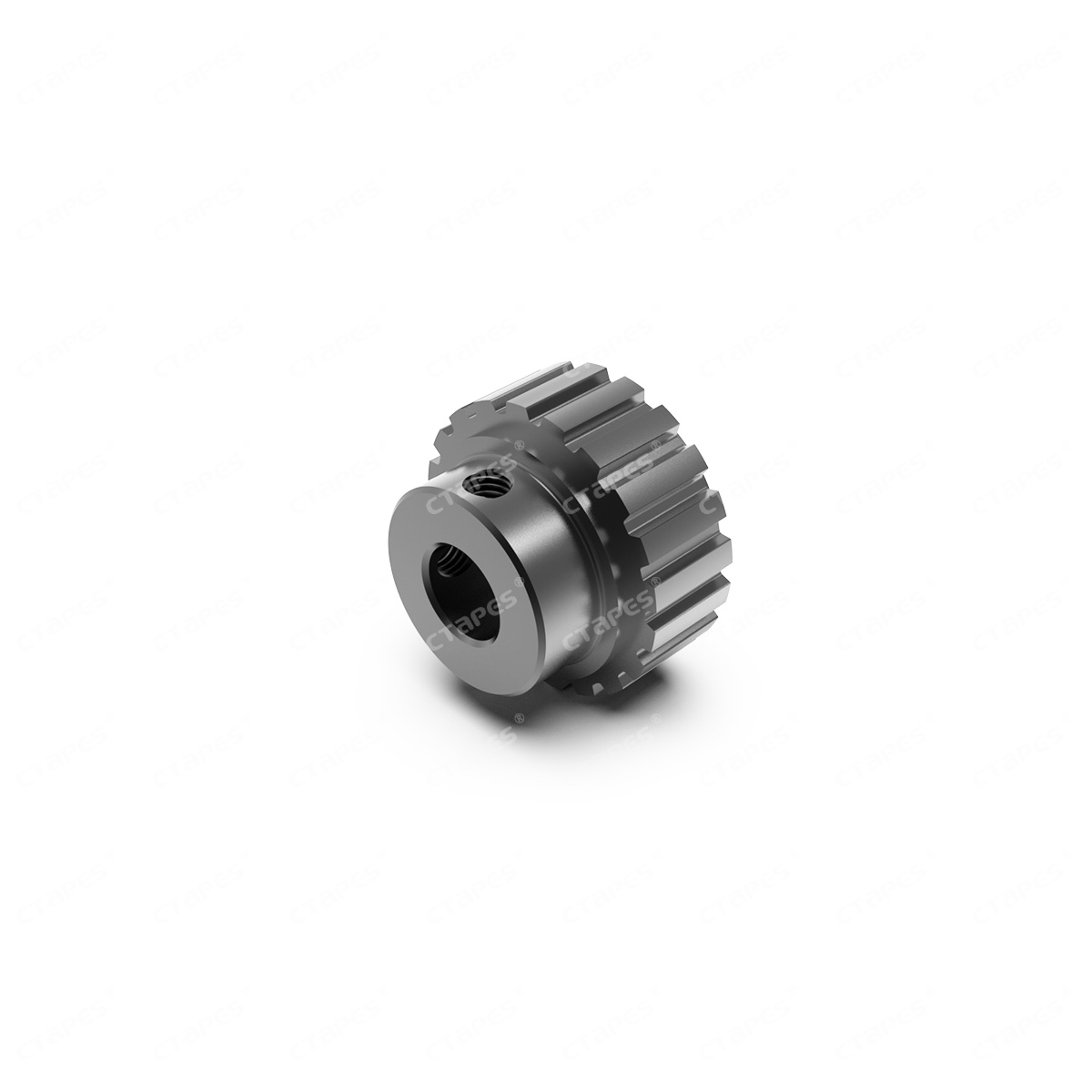

XL Pulleys

XL Pulleys

XL Pulleys Parameters:

Teeth Code XL
Materials Steel, Aluminum
Number Of Teeth 10 ~ 72
Pitch Diameter (mm) 16.17 ~ 116.43
Pulley Outer Diameter (mm) 15.66 ~ 115.92
Shaft Diameter d (mm) 4 ~ 26
Category: Tag:

XL Pulleys

XL Pulleys Teeth Profile:



Model bw (mm) hg (mm) Φ±1.5° rb (mm) rt (mm) 2δ (mm)
XL 1.32±0.05 1.65 25 0.41 0.64 0.508

XL Pulleys Types:

Model Numbers Of Teeth Pitch Diameter Dp Outer Diameter D H K J d F M
10XL 10 16.17 15.66 2.2 10 23 [4, 8] 23 12
11XL 11 17.79 17.28 2.2 10 25 [5, 9] 25 13
12XL 12 19.40 18.90 2.2 10 25 [6, 10] 25 14
14XL 14 22.64 22.13 2.2 10 28 [6, 14] 28 18
15XL 15 24.26 23.75 2.2 10 28 [6, 14] 28 18
16XL 16 25.87 25.36 2.2 8 17 [6, 10] 31 20
18XL 18 29.11 28.60 2.2 8 19 [6, 12] 33 22
19XL 19 30.72 30.22 2.2 8 19 [6, 14] 35 22
20XL 20 32.34 31.83 2.2 8 22 [8, 14] 38 26
21XL 21 33.96 33.45 2.2 8 22 [8, 16] 38 26
22XL 22 35.57 35.07 2.2 8 24 [8, 18] 43 28
24XL 24 38.81 38.30 2.2 8 27 [8, 19] 44 32
25XL 25 40.43 39.92 2.2 8 28 [8, 20] 44 32
26XL 26 42.04 41.53 2.2 8 29 [8, 21] 47 34
28XL 28 45.28 44.77 2.2 8 30 [10, 24] 48 36
30XL 30 48.51 48.00 2.2 8 33 [10, 26] 55 39
32XL 32 51.74 51.24 2.2 10 38 [10, 26] 57 41
34XL 34 54.98 54.47 2.2 10 38 [10, 26] 61 41
36XL 36 58.21 57.70 2.2 10 38 [10, 26] 61 41
38XL 38 61.45 60.94 2.2 10 38 [10, 26] 65 50
40XL 40 64.68 64.17 2.2 10 38 [10, 26] 69 50
42XL 42 67.91 67.41 2.2 10 38 [10, 26] 74 53
44XL 44 71.15 70.64 2.2 10 38 [10, 26] 78 58
48XL 48 77.62 77.11 10 38 [10, 26]
50XL 50 80.85 80.34 10 38 [12, 26]
60XL 60 97.02 96.51 10 38 [12, 26]
72XL 72 116.43 115.92 10 38 [12, 26]
