High Torque Drive 14M Polyurethane Synchronous Belts

High Torque Drive 14M Polyurethane Belts Profile

Main Material Polyurethane
Chord Material Steel Wire
Teeth Code 14M
Pitch (mm) 14.00
Belt Height (mm) 10.00
Teeth Height (mm) 6.02
Category:

High Torque Drive 14M Polyurethane Synchronous Belts



High Torque Drive 14M Polyurethane Belts Profile:

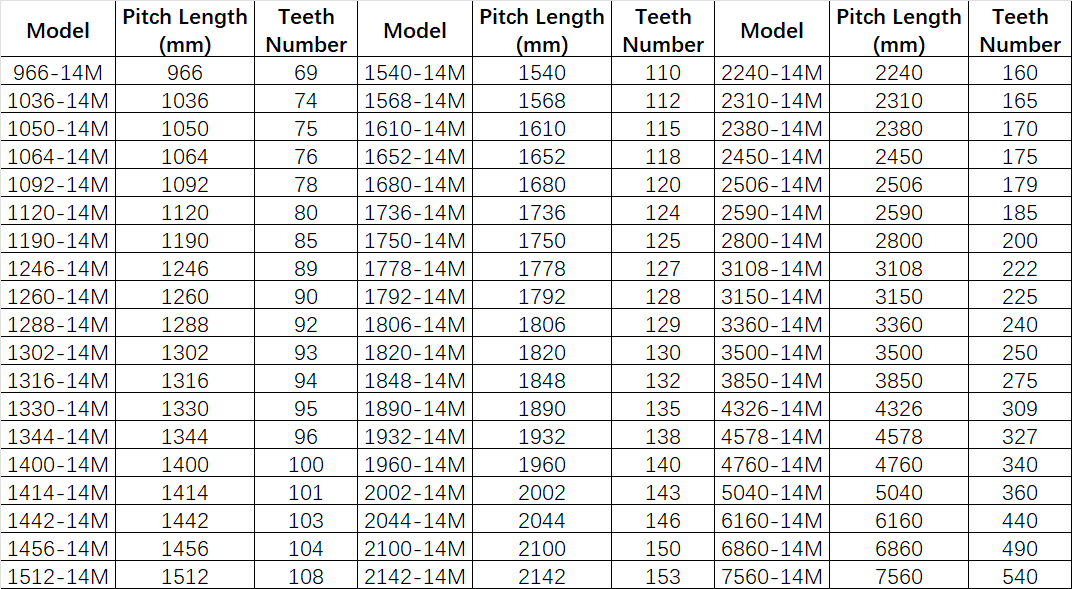

High Torque Drive 14M Polyurethane Synchronous Belts Specifications:

Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number
966-14M 966 69 1540-14M 1540 110 2240-14M 2240 160
1036-14M 1036 74 1568-14M 1568 112 2310-14M 2310 165
1050-14M 1050 75 1610-14M 1610 115 2380-14M 2380 170
1064-14M 1064 76 1652-14M 1652 118 2450-14M 2450 175
1092-14M 1092 78 1680-14M 1680 120 2506-14M 2506 179
1120-14M 1120 80 1736-14M 1736 124 2590-14M 2590 185
1190-14M 1190 85 1750-14M 1750 125 2800-14M 2800 200
1246-14M 1246 89 1778-14M 1778 127 3108-14M 3108 222
1260-14M 1260 90 1792-14M 1792 128 3150-14M 3150 225
1288-14M 1288 92 1806-14M 1806 129 3360-14M 3360 240
1302-14M 1302 93 1820-14M 1820 130 3500-14M 3500 250
1316-14M 1316 94 1848-14M 1848 132 3850-14M 3850 275
1330-14M 1330 95 1890-14M 1890 135 4326-14M 4326 309
1344-14M 1344 96 1932-14M 1932 138 4578-14M 4578 327
1400-14M 1400 100 1960-14M 1960 140 4760-14M 4760 340
1414-14M 1414 101 2002-14M 2002 143 5040-14M 5040 360
1442-14M 1442 103 2044-14M 2044 146 6160-14M 6160 440
1456-14M 1456 104 2100-14M 2100 150 6860-14M 6860 490
1512-14M 1512 108 2142-14M 2142 153 7560-14M 7560 540
