High Torque Drive 5M Polyurethane Synchronous Belts

High Torque Drive 5M Polyurethane Belts Profile

Main Material Polyurethane
Chord Material Steel Wire
Teeth Code 5M
Pitch (mm) 5.00
Belt Height (mm) 3.80
Teeth Height (mm) 2.06
Category:

High Torque Drive 5M Polyurethane Synchronous Belts



High Torque Drive 5M Polyurethane Belts Profile:

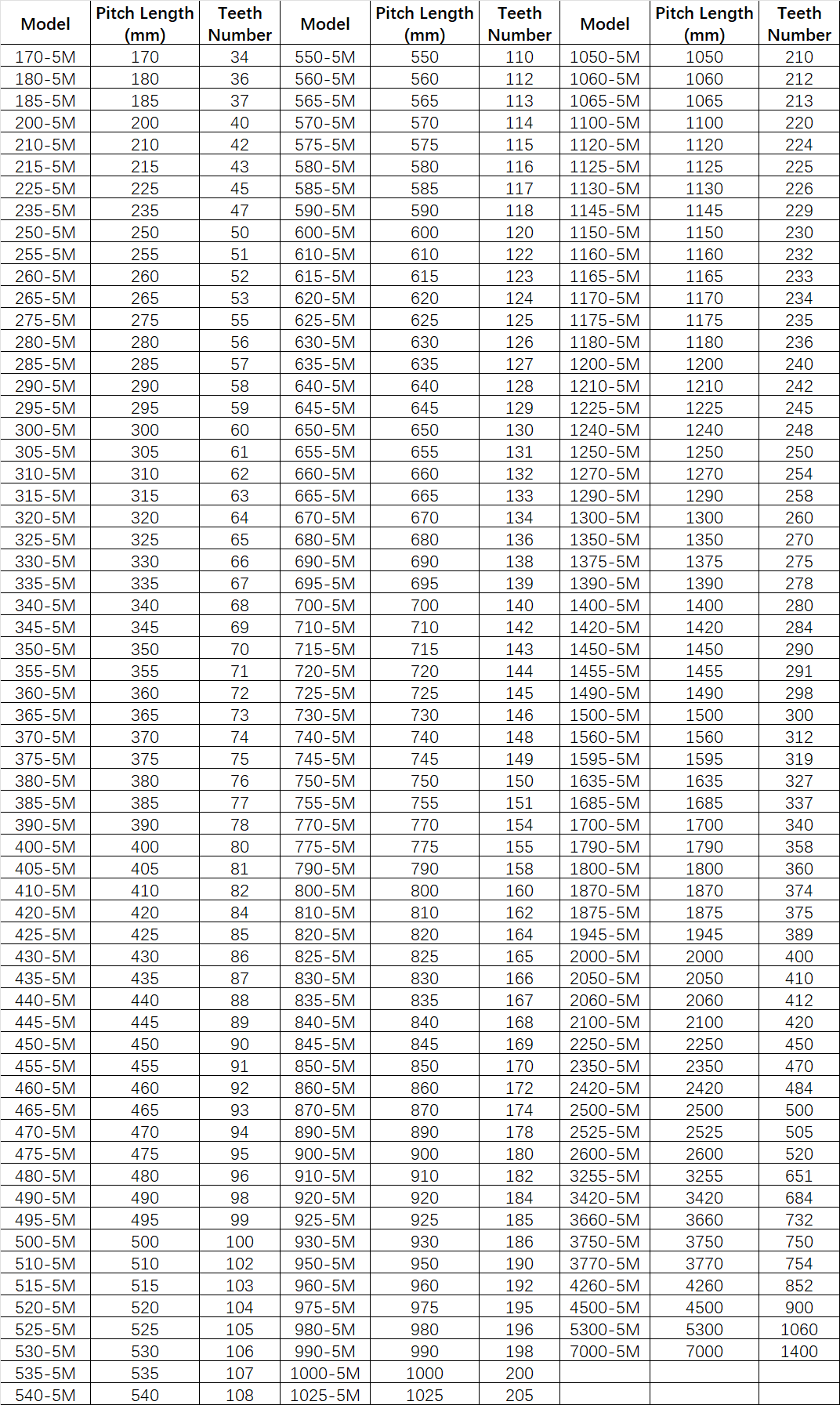

High Torque Drive 5M Polyurethane Synchronous Belts Specifications:

Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number
170-5M 170 34 550-5M 550 110 1050-5M 1050 210
180-5M 180 36 560-5M 560 112 1060-5M 1060 212
185-5M 185 37 565-5M 565 113 1065-5M 1065 213
200-5M 200 40 570-5M 570 114 1100-5M 1100 220
210-5M 210 42 575-5M 575 115 1120-5M 1120 224
215-5M 215 43 580-5M 580 116 1125-5M 1125 225
225-5M 225 45 585-5M 585 117 1130-5M 1130 226
235-5M 235 47 590-5M 590 118 1145-5M 1145 229
250-5M 250 50 600-5M 600 120 1150-5M 1150 230
255-5M 255 51 610-5M 610 122 1160-5M 1160 232
260-5M 260 52 615-5M 615 123 1165-5M 1165 233
265-5M 265 53 620-5M 620 124 1170-5M 1170 234
275-5M 275 55 625-5M 625 125 1175-5M 1175 235
280-5M 280 56 630-5M 630 126 1180-5M 1180 236
285-5M 285 57 635-5M 635 127 1200-5M 1200 240
290-5M 290 58 640-5M 640 128 1210-5M 1210 242
295-5M 295 59 645-5M 645 129 1225-5M 1225 245
300-5M 300 60 650-5M 650 130 1240-5M 1240 248
305-5M 305 61 655-5M 655 131 1250-5M 1250 250
310-5M 310 62 660-5M 660 132 1270-5M 1270 254
315-5M 315 63 665-5M 665 133 1290-5M 1290 258
320-5M 320 64 670-5M 670 134 1300-5M 1300 260
325-5M 325 65 680-5M 680 136 1350-5M 1350 270
330-5M 330 66 690-5M 690 138 1375-5M 1375 275
335-5M 335 67 695-5M 695 139 1390-5M 1390 278
340-5M 340 68 700-5M 700 140 1400-5M 1400 280
345-5M 345 69 710-5M 710 142 1420-5M 1420 284
350-5M 350 70 715-5M 715 143 1450-5M 1450 290
355-5M 355 71 720-5M 720 144 1455-5M 1455 291
360-5M 360 72 725-5M 725 145 1490-5M 1490 298
365-5M 365 73 730-5M 730 146 1500-5M 1500 300
370-5M 370 74 740-5M 740 148 1560-5M 1560 312
375-5M 375 75 745-5M 745 149 1595-5M 1595 319
380-5M 380 76 750-5M 750 150 1635-5M 1635 327
385-5M 385 77 755-5M 755 151 1685-5M 1685 337
390-5M 390 78 770-5M 770 154 1700-5M 1700 340
400-5M 400 80 775-5M 775 155 1790-5M 1790 358
405-5M 405 81 790-5M 790 158 1800-5M 1800 360
410-5M 410 82 800-5M 800 160 1870-5M 1870 374
420-5M 420 84 810-5M 810 162 1875-5M 1875 375
425-5M 425 85 820-5M 820 164 1945-5M 1945 389
430-5M 430 86 825-5M 825 165 2000-5M 2000 400
435-5M 435 87 830-5M 830 166 2050-5M 2050 410
440-5M 440 88 835-5M 835 167 2060-5M 2060 412
445-5M 445 89 840-5M 840 168 2100-5M 2100 420
450-5M 450 90 845-5M 845 169 2250-5M 2250 450
455-5M 455 91 850-5M 850 170 2350-5M 2350 470
460-5M 460 92 860-5M 860 172 2420-5M 2420 484
465-5M 465 93 870-5M 870 174 2500-5M 2500 500
470-5M 470 94 890-5M 890 178 2525-5M 2525 505
475-5M 475 95 900-5M 900 180 2600-5M 2600 520
480-5M 480 96 910-5M 910 182 3255-5M 3255 651
490-5M 490 98 920-5M 920 184 3420-5M 3420 684
495-5M 495 99 925-5M 925 185 3660-5M 3660 732
500-5M 500 100 930-5M 930 186 3750-5M 3750 750
510-5M 510 102 950-5M 950 190 3770-5M 3770 754
515-5M 515 103 960-5M 960 192 4260-5M 4260 852
520-5M 520 104 975-5M 975 195 4500-5M 4500 900
525-5M 525 105 980-5M 980 196 5300-5M 5300 1060
530-5M 530 106 990-5M 990 198 7000-5M 7000 1400
535-5M 535 107 1000-5M 1000 200
540-5M 540 108 1025-5M 1025 205
