XL Polyurethane Synchronous Belts

XL Polyurethane Belts Profile

Main Material Polyurethane
Chord Material Steel Wire
Teeth Code XL
Pitch (mm) 5.08
Belt Height (mm) 2.30
Teeth Height (mm) 1.27
Category:

XL Polyurethane Synchronous Belts



XL Polyurethane Belts Profile:

XL Polyurethane Synchronous Belts

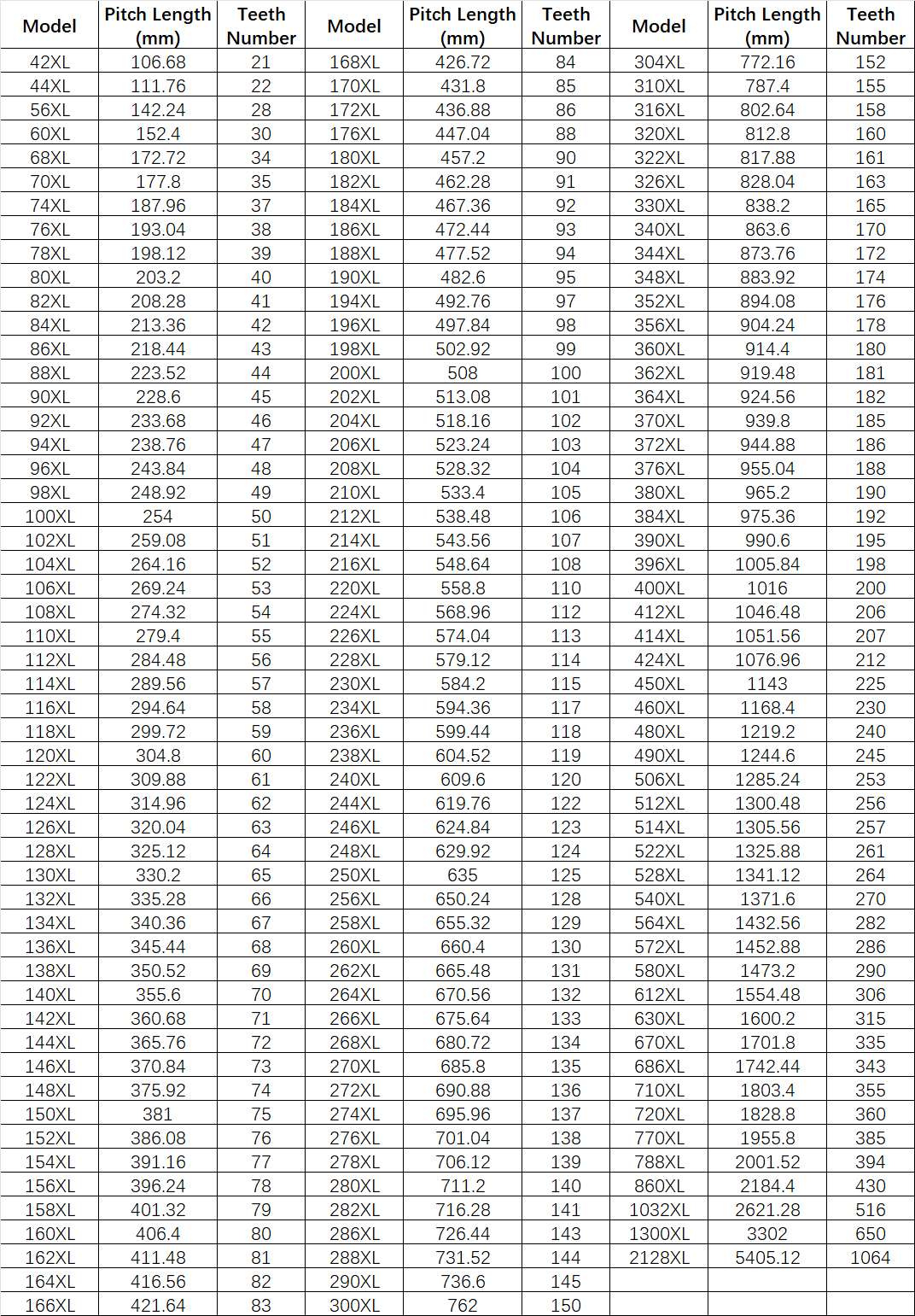

XL Polyurethane Synchronous Belts Specifications:

Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number
42XL 106.68 21 168XL 426.72 84 304XL 772.16 152
44XL 111.76 22 170XL 431.8 85 310XL 787.4 155
56XL 142.24 28 172XL 436.88 86 316XL 802.64 158
60XL 152.4 30 176XL 447.04 88 320XL 812.8 160
68XL 172.72 34 180XL 457.2 90 322XL 817.88 161
70XL 177.8 35 182XL 462.28 91 326XL 828.04 163
74XL 187.96 37 184XL 467.36 92 330XL 838.2 165
76XL 193.04 38 186XL 472.44 93 340XL 863.6 170
78XL 198.12 39 188XL 477.52 94 344XL 873.76 172
80XL 203.2 40 190XL 482.6 95 348XL 883.92 174
82XL 208.28 41 194XL 492.76 97 352XL 894.08 176
84XL 213.36 42 196XL 497.84 98 356XL 904.24 178
86XL 218.44 43 198XL 502.92 99 360XL 914.4 180
88XL 223.52 44 200XL 508 100 362XL 919.48 181
90XL 228.6 45 202XL 513.08 101 364XL 924.56 182
92XL 233.68 46 204XL 518.16 102 370XL 939.8 185
94XL 238.76 47 206XL 523.24 103 372XL 944.88 186
96XL 243.84 48 208XL 528.32 104 376XL 955.04 188
98XL 248.92 49 210XL 533.4 105 380XL 965.2 190
100XL 254 50 212XL 538.48 106 384XL 975.36 192
102XL 259.08 51 214XL 543.56 107 390XL 990.6 195
104XL 264.16 52 216XL 548.64 108 396XL 1005.84 198
106XL 269.24 53 220XL 558.8 110 400XL 1016 200
108XL 274.32 54 224XL 568.96 112 412XL 1046.48 206
110XL 279.4 55 226XL 574.04 113 414XL 1051.56 207
112XL 284.48 56 228XL 579.12 114 424XL 1076.96 212
114XL 289.56 57 230XL 584.2 115 450XL 1143 225
116XL 294.64 58 234XL 594.36 117 460XL 1168.4 230
118XL 299.72 59 236XL 599.44 118 480XL 1219.2 240
120XL 304.8 60 238XL 604.52 119 490XL 1244.6 245
122XL 309.88 61 240XL 609.6 120 506XL 1285.24 253
124XL 314.96 62 244XL 619.76 122 512XL 1300.48 256
126XL 320.04 63 246XL 624.84 123 514XL 1305.56 257
128XL 325.12 64 248XL 629.92 124 522XL 1325.88 261
130XL 330.2 65 250XL 635 125 528XL 1341.12 264
132XL 335.28 66 256XL 650.24 128 540XL 1371.6 270
134XL 340.36 67 258XL 655.32 129 564XL 1432.56 282
136XL 345.44 68 260XL 660.4 130 572XL 1452.88 286
138XL 350.52 69 262XL 665.48 131 580XL 1473.2 290
140XL 355.6 70 264XL 670.56 132 612XL 1554.48 306
142XL 360.68 71 266XL 675.64 133 630XL 1600.2 315
144XL 365.76 72 268XL 680.72 134 670XL 1701.8 335
146XL 370.84 73 270XL 685.8 135 686XL 1742.44 343
148XL 375.92 74 272XL 690.88 136 710XL 1803.4 355
150XL 381 75 274XL 695.96 137 720XL 1828.8 360
152XL 386.08 76 276XL 701.04 138 770XL 1955.8 385
154XL 391.16 77 278XL 706.12 139 788XL 2001.52 394
156XL 396.24 78 280XL 711.2 140 860XL 2184.4 430
158XL 401.32 79 282XL 716.28 141 1032XL 2621.28 516
160XL 406.4 80 286XL 726.44 143 1300XL 3302 650
162XL 411.48 81 288XL 731.52 144 2128XL 5405.12 1064
164XL 416.56 82 290XL 736.6 145
166XL 421.64 83 300XL 762 150
