High Torque Drive 8M Polyurethane Synchronous Belts

High Torque Drive 8M Belts Profile

Main Material Polyurethane
Chord Material Steel Wire
Teeth Code 8M
Pitch (mm) 8.00
Belt Height (mm) 6.00
Teeth Height (mm) 3.38
Category:

High Torque Drive 8M Polyurethane Synchronous Belts



High Torque Drive 8M Polyurethane Synchronous Belts Profile:

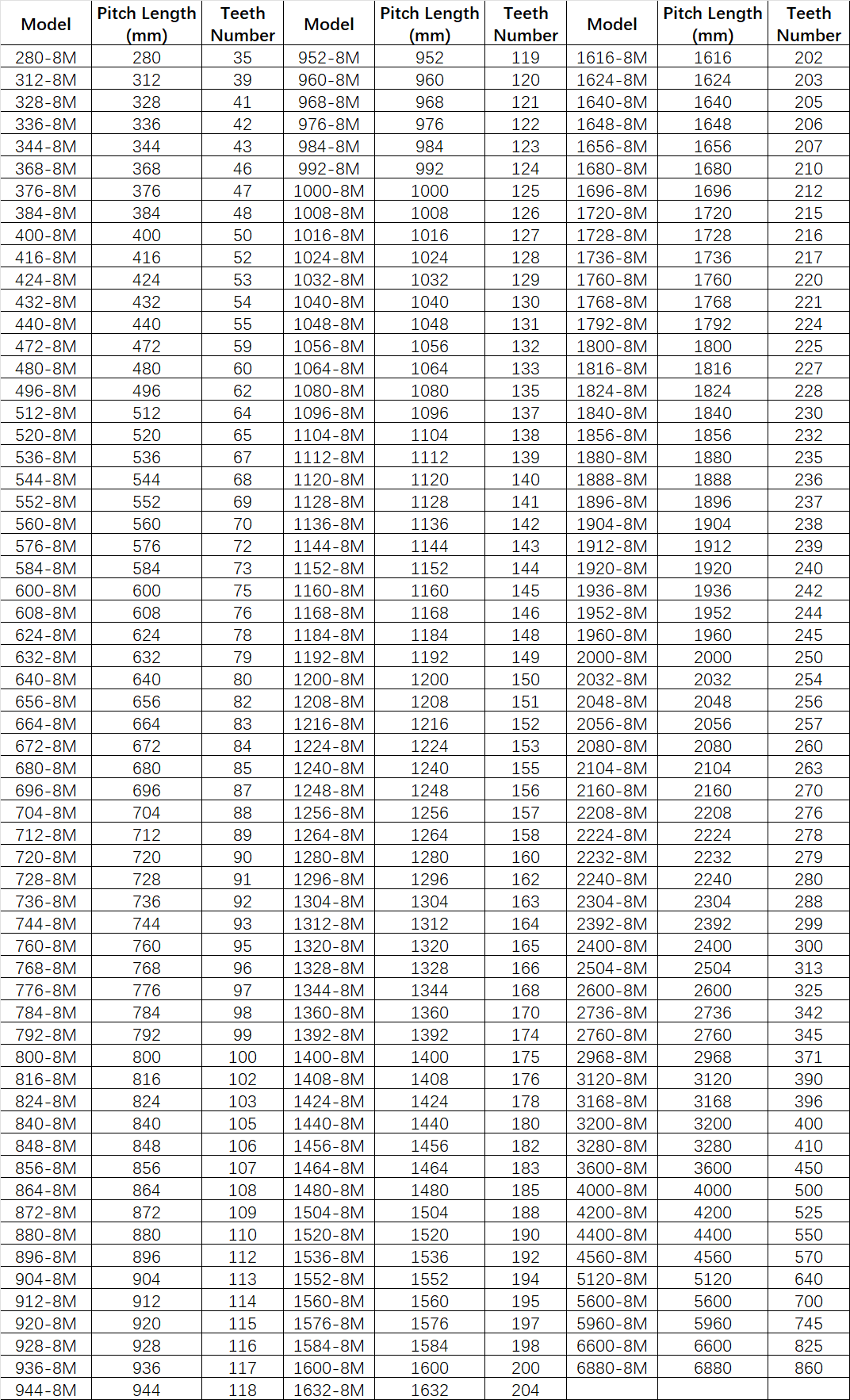

High Torque Drive 8M Polyurethane Synchronous Belts Specifications:

Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number
280-8M 280 35 952-8M 952 119 1616-8M 1616 202
312-8M 312 39 960-8M 960 120 1624-8M 1624 203
328-8M 328 41 968-8M 968 121 1640-8M 1640 205
336-8M 336 42 976-8M 976 122 1648-8M 1648 206
344-8M 344 43 984-8M 984 123 1656-8M 1656 207
368-8M 368 46 992-8M 992 124 1680-8M 1680 210
376-8M 376 47 1000-8M 1000 125 1696-8M 1696 212
384-8M 384 48 1008-8M 1008 126 1720-8M 1720 215
400-8M 400 50 1016-8M 1016 127 1728-8M 1728 216
416-8M 416 52 1024-8M 1024 128 1736-8M 1736 217
424-8M 424 53 1032-8M 1032 129 1760-8M 1760 220
432-8M 432 54 1040-8M 1040 130 1768-8M 1768 221
440-8M 440 55 1048-8M 1048 131 1792-8M 1792 224
472-8M 472 59 1056-8M 1056 132 1800-8M 1800 225
480-8M 480 60 1064-8M 1064 133 1816-8M 1816 227
496-8M 496 62 1080-8M 1080 135 1824-8M 1824 228
512-8M 512 64 1096-8M 1096 137 1840-8M 1840 230
520-8M 520 65 1104-8M 1104 138 1856-8M 1856 232
536-8M 536 67 1112-8M 1112 139 1880-8M 1880 235
544-8M 544 68 1120-8M 1120 140 1888-8M 1888 236
552-8M 552 69 1128-8M 1128 141 1896-8M 1896 237
560-8M 560 70 1136-8M 1136 142 1904-8M 1904 238
576-8M 576 72 1144-8M 1144 143 1912-8M 1912 239
584-8M 584 73 1152-8M 1152 144 1920-8M 1920 240
600-8M 600 75 1160-8M 1160 145 1936-8M 1936 242
608-8M 608 76 1168-8M 1168 146 1952-8M 1952 244
624-8M 624 78 1184-8M 1184 148 1960-8M 1960 245
632-8M 632 79 1192-8M 1192 149 2000-8M 2000 250
640-8M 640 80 1200-8M 1200 150 2032-8M 2032 254
656-8M 656 82 1208-8M 1208 151 2048-8M 2048 256
664-8M 664 83 1216-8M 1216 152 2056-8M 2056 257
672-8M 672 84 1224-8M 1224 153 2080-8M 2080 260
680-8M 680 85 1240-8M 1240 155 2104-8M 2104 263
696-8M 696 87 1248-8M 1248 156 2160-8M 2160 270
704-8M 704 88 1256-8M 1256 157 2208-8M 2208 276
712-8M 712 89 1264-8M 1264 158 2224-8M 2224 278
720-8M 720 90 1280-8M 1280 160 2232-8M 2232 279
728-8M 728 91 1296-8M 1296 162 2240-8M 2240 280
736-8M 736 92 1304-8M 1304 163 2304-8M 2304 288
744-8M 744 93 1312-8M 1312 164 2392-8M 2392 299
760-8M 760 95 1320-8M 1320 165 2400-8M 2400 300
768-8M 768 96 1328-8M 1328 166 2504-8M 2504 313
776-8M 776 97 1344-8M 1344 168 2600-8M 2600 325
784-8M 784 98 1360-8M 1360 170 2736-8M 2736 342
792-8M 792 99 1392-8M 1392 174 2760-8M 2760 345
800-8M 800 100 1400-8M 1400 175 2968-8M 2968 371
816-8M 816 102 1408-8M 1408 176 3120-8M 3120 390
824-8M 824 103 1424-8M 1424 178 3168-8M 3168 396
840-8M 840 105 1440-8M 1440 180 3200-8M 3200 400
848-8M 848 106 1456-8M 1456 182 3280-8M 3280 410
856-8M 856 107 1464-8M 1464 183 3600-8M 3600 450
864-8M 864 108 1480-8M 1480 185 4000-8M 4000 500
872-8M 872 109 1504-8M 1504 188 4200-8M 4200 525
880-8M 880 110 1520-8M 1520 190 4400-8M 4400 550
896-8M 896 112 1536-8M 1536 192 4560-8M 4560 570
904-8M 904 113 1552-8M 1552 194 5120-8M 5120 640
912-8M 912 114 1560-8M 1560 195 5600-8M 5600 700
920-8M 920 115 1576-8M 1576 197 5960-8M 5960 745
928-8M 928 116 1584-8M 1584 198 6600-8M 6600 825
936-8M 936 117 1600-8M 1600 200 6880-8M 6880 860
944-8M 944 118 1632-8M 1632 204
