L Polyurethane Synchronous Belts

L Rubber Belts Profile

Main Material Polyurethane
Chord Material Steel Wire
Teeth Code L
Pitch (mm) 9.525
Belt Height (mm) 3.60
Teeth Height (mm) 1.91
Category:

L Polyurethane Synchronous Belts



L Polyurethane Belts Profile:

L Polyurethane Synchronous Belts

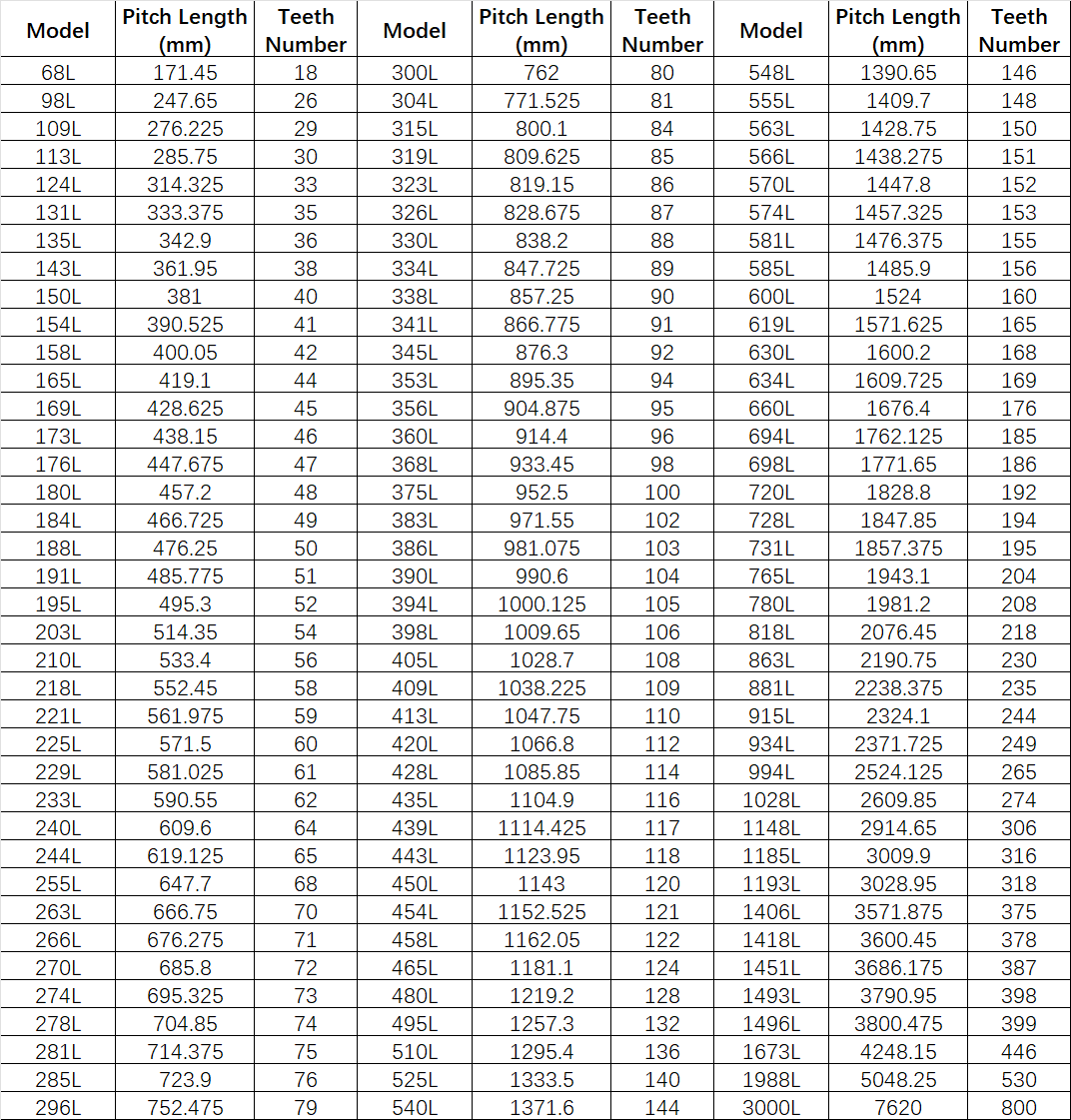

L Polyurethane Synchronous Belts Specifications:

Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number Model Pitch Length (mm) Teeth Number
68L 171.45 18 300L 762 80 548L 1390.65 146
98L 247.65 26 304L 771.525 81 555L 1409.7 148
109L 276.225 29 315L 800.1 84 563L 1428.75 150
113L 285.75 30 319L 809.625 85 566L 1438.275 151
124L 314.325 33 323L 819.15 86 570L 1447.8 152
131L 333.375 35 326L 828.675 87 574L 1457.325 153
135L 342.9 36 330L 838.2 88 581L 1476.375 155
143L 361.95 38 334L 847.725 89 585L 1485.9 156
150L 381 40 338L 857.25 90 600L 1524 160
154L 390.525 41 341L 866.775 91 619L 1571.625 165
158L 400.05 42 345L 876.3 92 630L 1600.2 168
165L 419.1 44 353L 895.35 94 634L 1609.725 169
169L 428.625 45 356L 904.875 95 660L 1676.4 176
173L 438.15 46 360L 914.4 96 694L 1762.125 185
176L 447.675 47 368L 933.45 98 698L 1771.65 186
180L 457.2 48 375L 952.5 100 720L 1828.8 192
184L 466.725 49 383L 971.55 102 728L 1847.85 194
188L 476.25 50 386L 981.075 103 731L 1857.375 195
191L 485.775 51 390L 990.6 104 765L 1943.1 204
195L 495.3 52 394L 1000.125 105 780L 1981.2 208
203L 514.35 54 398L 1009.65 106 818L 2076.45 218
210L 533.4 56 405L 1028.7 108 863L 2190.75 230
218L 552.45 58 409L 1038.225 109 881L 2238.375 235
221L 561.975 59 413L 1047.75 110 915L 2324.1 244
225L 571.5 60 420L 1066.8 112 934L 2371.725 249
229L 581.025 61 428L 1085.85 114 994L 2524.125 265
233L 590.55 62 435L 1104.9 116 1028L 2609.85 274
240L 609.6 64 439L 1114.425 117 1148L 2914.65 306
244L 619.125 65 443L 1123.95 118 1185L 3009.9 316
255L 647.7 68 450L 1143 120 1193L 3028.95 318
263L 666.75 70 454L 1152.525 121 1406L 3571.875 375
266L 676.275 71 458L 1162.05 122 1418L 3600.45 378
270L 685.8 72 465L 1181.1 124 1451L 3686.175 387
274L 695.325 73 480L 1219.2 128 1493L 3790.95 398
278L 704.85 74 495L 1257.3 132 1496L 3800.475 399
281L 714.375 75 510L 1295.4 136 1673L 4248.15 446
285L 723.9 76 525L 1333.5 140 1988L 5048.25 530
296L 752.475 79 540L 1371.6 144 3000L 7620 800
